Water Treatment Plants

Various structures within treatment plants need to be coated for corrosion prevention or rehabilitation. Hychem has solutions for clarifiers, inlet works, splitter boxes, bioreactors, tanks and other structures.

Repair, rehabilitate, coat and protect to stop corrosion. Increase asset life span with our range of specialist products below:

Products

  • E500P HYCHEM E500P is designed as a pore filling primer to be used in conjunction with high build epoxy coatings and toppings to inhibit gassing of the high build product due to thermal movement of air between the substrate and the air space. This pore filling action is essential when the surface is to becoated with Hychem TL5.
  • E500T HYCHEM E500T is designed to be used as fairing mortar for application to prepared concrete surfaces which are to be coated with a protective coating. The product is used for the filling and sealing of small holes formed by the removal of cement paste during water blasting and other surface preparation methods. Hychem E500T can also be used as a general purpose patching compound for rendering or making good the surface prior to theapplication of a protective top coat.
  • TL5 EPL HYCHEM TL5 EPL is a chemically resistant high-build epoxy coating designed for use in environments where exposure to water, salt solutions, alkali and dilute mineral acids is required. The product is designed for applications of up to 6mm+ using wet on wet spray technique, but can also be trowelled in small areas where spray application is unsuitable. HYCHEM TL5 EPL is based on the same resin as HYCHEM TL5 but uses a slower hardener system to allow a longer work time. This change in hardener results in equally good sulphuric acid resistance compared to TL5.

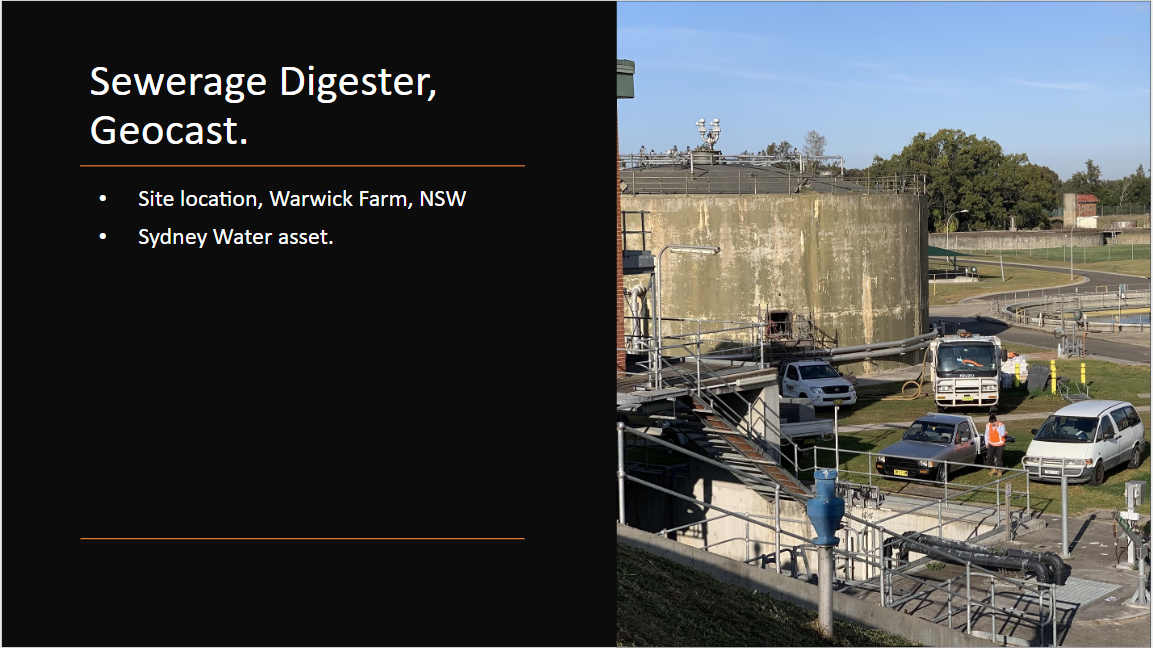

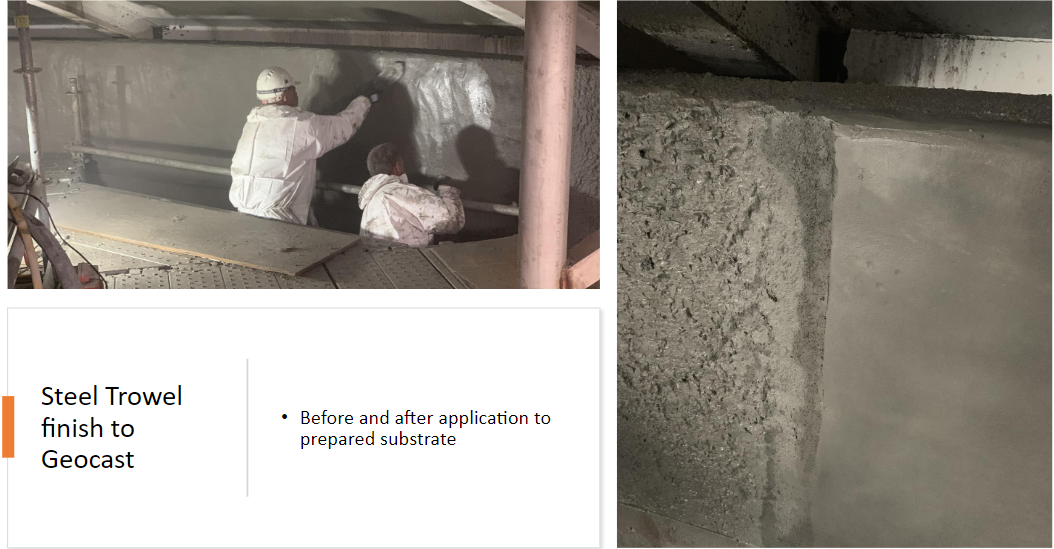

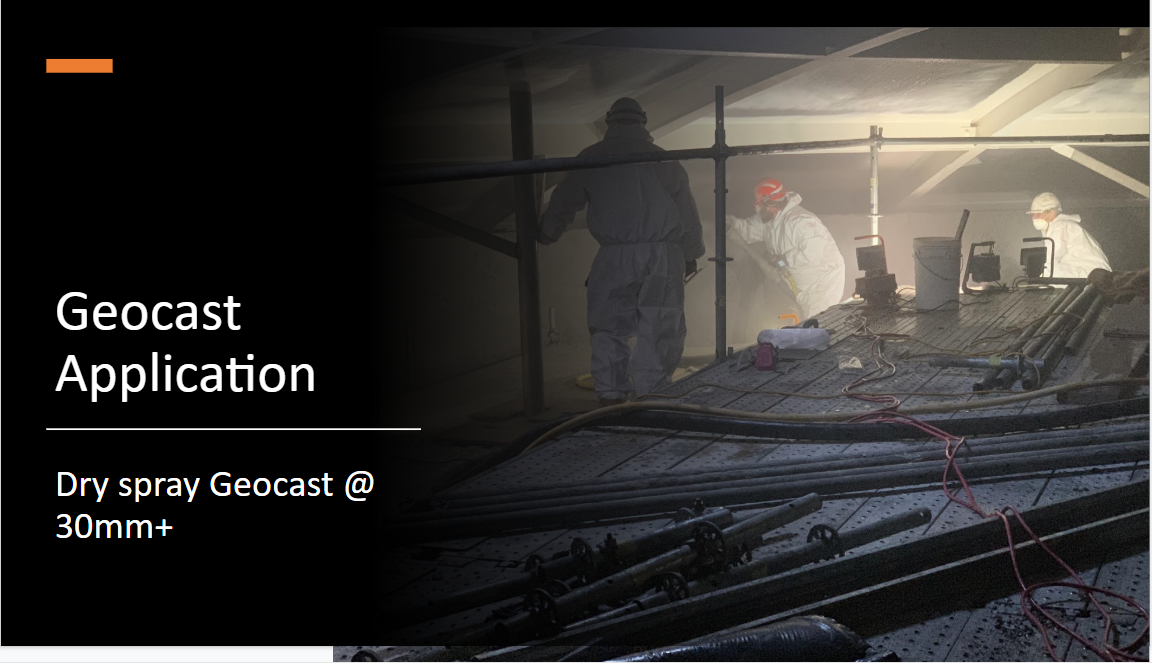

  • Geocast – GEOCAST Geopolymer is a single component, dry packaged, polymer–modified mortar with microsilica geopolymer, pozzolan, flyash and select admixtures. It is specifically designed for horizontal, vertical
    and overhead surface repairs in reinforced concrete and brick pipes, corrugated metal pipe inverts (CMP) and arches, sewer manholes and (water) wastewater structures. The GeoCast Geopolymer withstands hydrogen sulfide (H2S) corrosion. Geocast offers high early strength and long term durability. Applications to 100mm thicknesses overhead – >62 Mpa
  • Velosit RM205 – VELOSIT RM205 Structural Concrete Repair Mortar 6 – 100 MM – 45MPa a cementitious repair mortar for concrete restoration acc. to EN 1504-9. It is used to fill large voids or build up larger cross-sections up to 100 mm. Potable Water Approved – AS/NZS 4020:2005
  • WP120
  • DB830: DB 830 is a waterproof joint sealing tape used for waterproofing of construction and expansion joints. > 300 % tensile elongation Minimal thickness makes it an especially suitable substrate for tile applications Resists 50 m water pressure acc. to EN 12390-8 Good chemical resistance against many typical mediaUV stable
  • SR207 – VELOSIT SR 207 is a Sulphate-resistant, structural grade cementitious repair mortar for concrete restoration acc. to EN 1504-9. It is used to fill large voids or build up larger cross-sections up to 100 mm specifically designed for repairs in sewage and waste water structures.





Repair, rehabilitate, coat and protect to stop corrosion. Increase asset life span with our range of specialist products below:

Products

  • E500P HYCHEM E500P is designed as a pore filling primer to be used in conjunction with high build epoxy coatings and toppings to inhibit gassing of the high build product due to thermal movement of air between the substrate and the air space. This pore filling action is essential when the surface is to becoated with Hychem TL5.
  • E500T HYCHEM E500T is designed to be used as fairing mortar for application to prepared concrete surfaces which are to be coated with a protective coating. The product is used for the filling and sealing of small holes formed by the removal of cement paste during water blasting and other surface preparation methods. Hychem E500T can also be used as a general purpose patching compound for rendering or making good the surface prior to theapplication of a protective top coat.
  • TL5 EPL HYCHEM TL5 EPL is a chemically resistant high-build epoxy coating designed for use in environments where exposure to water, salt solutions, alkali and dilute mineral acids is required. The product is designed for applications of up to 6mm+ using wet on wet spray technique, but can also be trowelled in small areas where spray application is unsuitable. HYCHEM TL5 EPL is based on the same resin as HYCHEM TL5 but uses a slower hardener system to allow a longer work time. This change in hardener results in equally good sulphuric acid resistance compared to TL5.
  • Geocast – GEOCAST Geopolymer is a single component, dry packaged, polymer–modified mortar with microsilica geopolymer, pozzolan, flyash and select admixtures. It is specifically designed for horizontal, vertical
    and overhead surface repairs in reinforced concrete and brick pipes, corrugated metal pipe inverts (CMP) and arches, sewer manholes and (water) wastewater structures. The GeoCast Geopolymer withstands hydrogen sulfide (H2S) corrosion. Geocast offers high early strength and long term durability. Applications to 100mm thicknesses overhead – >62 Mpa
  • Velosit RM205 – VELOSIT RM205 Structural Concrete Repair Mortar 6 – 100 MM – 45MPa a cementitious repair mortar for concrete restoration acc. to EN 1504-9. It is used to fill large voids or build up larger cross-sections up to 100 mm. Potable Water Approved – AS/NZS 4020:2005
  • WP120
  • DB830: DB 830 is a waterproof joint sealing tape used for waterproofing of construction and expansion joints. > 300 % tensile elongation Minimal thickness makes it an especially suitable substrate for tile applications Resists 50 m water pressure acc. to EN 12390-8 Good chemical resistance against many typical mediaUV stable
  • SR207 – VELOSIT SR 207 is a Sulphate-resistant, structural grade cementitious repair mortar for concrete restoration acc. to EN 1504-9. It is used to fill large voids or build up larger cross-sections up to 100 mm specifically designed for repairs in sewage and waste water structures.
