Grouting & Anchoring

Hychem offer a range of epoxy and cementitous grouts for numerous specialist applications including underwater application

Choose from our range for specialist grouting applications.

Products

  • Hygrout 205Epoxy grout for 10 -175 mm pour depths – HYGROUT 205 is a three component, high performance epoxy grout. It is designed to exhibit high strength,high flow and low exotherm during curing enabling it to be used in pours up to 175mm.
  • Hygrout 210Deep pour epoxy grout – HYGROUT 210 is a three component, high performance epoxy grout. It is designed to exhibit low exotherm during curing enabling it to be used in deep pours and at elevated application temperatures.HYGROUT 210 has high strength and low creep.
  • Hygrout 270HYCHEM E270 is designed for use wherever high ambient temperatures preclude the use of general purpose epoxy construction grouts. This may be due to large pour volume, high ambient temperature during application or high temperatures in the working environment. HYCHEM E270 is formulated for good flow properties in tight spaces, additional quartz aggregate may be addedwhere design considerations allow the use of a heavier bodied grout.
  • Velosit NG511VELOSIT NG 511 is a High-Performance Non-Shrink Grout for 6mm to 50mm cementitious non-shrink grout for concrete substrates. It is used to fill large voids or underneath base plates of machinery or building columns up to 50 mm clearance. The final strength of more than 70 MPa.
  • Velosit NG512 VELOSIT NG 512 is a is a High-Performance cementitious Non-Shrink Grout for concrete substrates. It is used to fill large voids or underneath base plates of machinery or building columns from 12mm to 120 mm clearance. The final strength of more than 90 MPa.
  • Velosit NG513VELOSIT NG 513 is a pumpable cementitous underwater grout for concrete substrates Underwater Non-Shrink Grout for 12 to 120 mm. It is used to fill large voids or restoraton of concrete elements like piles or secant pile walls. Typical applicatonfields besides others are as follows: Repair of large surface defects on concrete piles, Underwater filling of gaps between two concrete bodies, Groutng underwater, Anchoring of starter bars and dowels, Use as micro-concrete. Final strength of more than 65 MPa

Recommended Products

Product Type

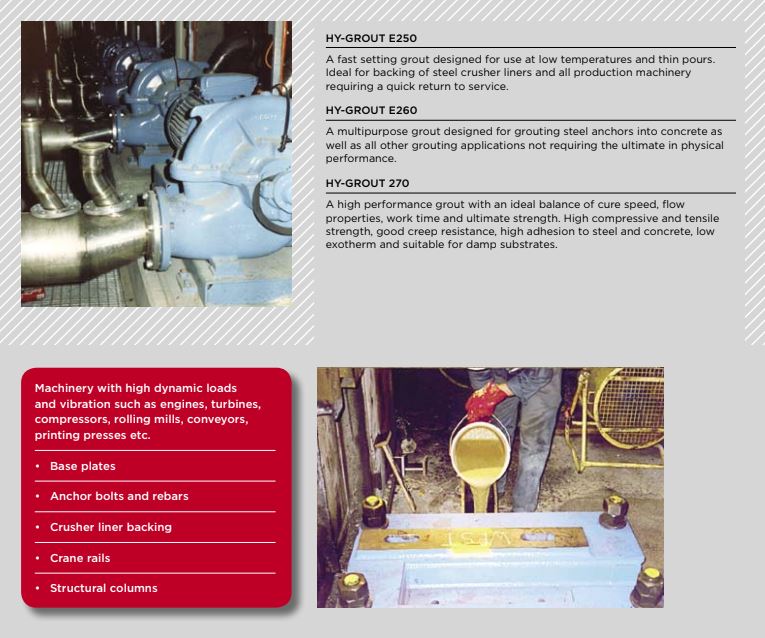

HY-GROUT E250, HY-GROUT E260 HY-GROUT E270

Groutinganchoring case study

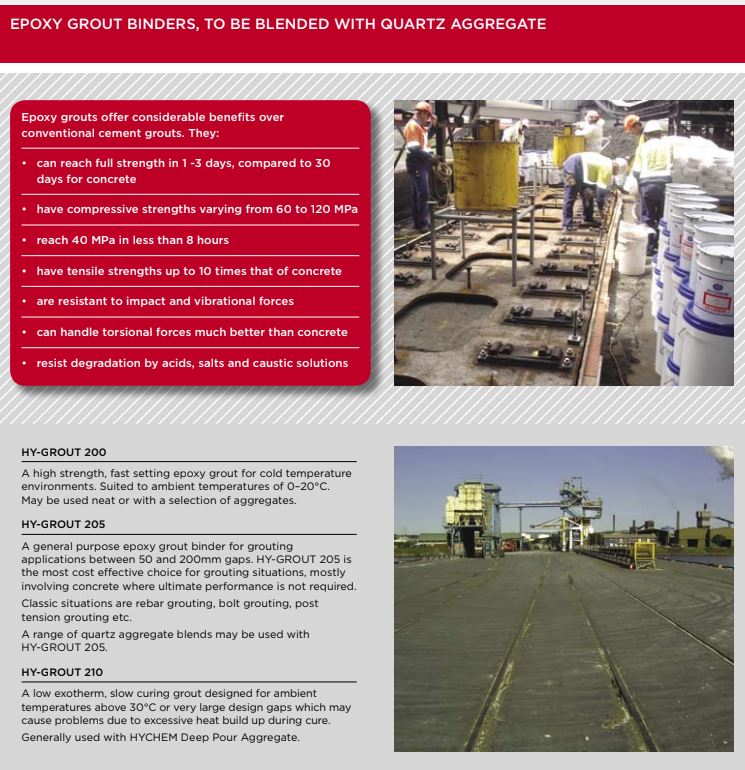

HY-GROUT E200 HY-GROUT E205, HY-GROUT E210

Groutinganchoring case study
grout_pump

Choose from our range for specialist grouting applications.

Products

  • Hygrout 205Epoxy grout for 10 -175 mm pour depths – HYGROUT 205 is a three component, high performance epoxy grout. It is designed to exhibit high strength,high flow and low exotherm during curing enabling it to be used in pours up to 175mm.
  • Hygrout 210Deep pour epoxy grout – HYGROUT 210 is a three component, high performance epoxy grout. It is designed to exhibit low exotherm during curing enabling it to be used in deep pours and at elevated application temperatures.HYGROUT 210 has high strength and low creep.
  • Hygrout 270HYCHEM E270 is designed for use wherever high ambient temperatures preclude the use of general purpose epoxy construction grouts. This may be due to large pour volume, high ambient temperature during application or high temperatures in the working environment. HYCHEM E270 is formulated for good flow properties in tight spaces, additional quartz aggregate may be addedwhere design considerations allow the use of a heavier bodied grout.
  • Velosit NG511VELOSIT NG 511 is a High-Performance Non-Shrink Grout for 6mm to 50mm cementitious non-shrink grout for concrete substrates. It is used to fill large voids or underneath base plates of machinery or building columns up to 50 mm clearance. The final strength of more than 70 MPa.
  • Velosit NG512 VELOSIT NG 512 is a is a High-Performance cementitious Non-Shrink Grout for concrete substrates. It is used to fill large voids or underneath base plates of machinery or building columns from 12mm to 120 mm clearance. The final strength of more than 90 MPa.
  • Velosit NG513VELOSIT NG 513 is a pumpable cementitous underwater grout for concrete substrates Underwater Non-Shrink Grout for 12 to 120 mm. It is used to fill large voids or restoraton of concrete elements like piles or secant pile walls. Typical applicatonfields besides others are as follows: Repair of large surface defects on concrete piles, Underwater filling of gaps between two concrete bodies, Groutng underwater, Anchoring of starter bars and dowels, Use as micro-concrete. Final strength of more than 65 MPa

Recommended Products

Product Type

HY-GROUT E250, HY-GROUT E260 HY-GROUT E270

Groutinganchoring case study

HY-GROUT E200 HY-GROUT E205, HY-GROUT E210

Groutinganchoring case study
grout_pump

Need a specification ? - It’s FREE

All you needed to do was ask us !

We would love to work with you to make sure your project is a complete success so why not fill out the form below and send it to us. We will get back to you at a convenient time and work out what we need to do next. It’s as simple as that really !
